Türkçe Yes, it can.

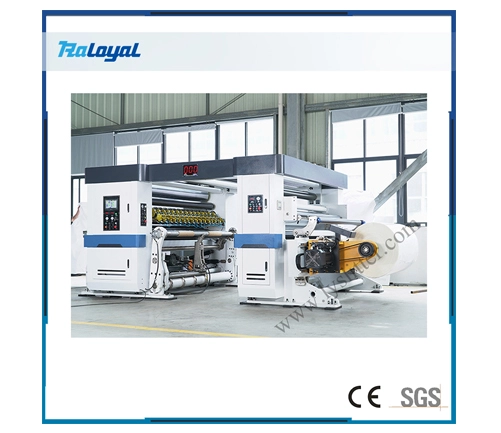

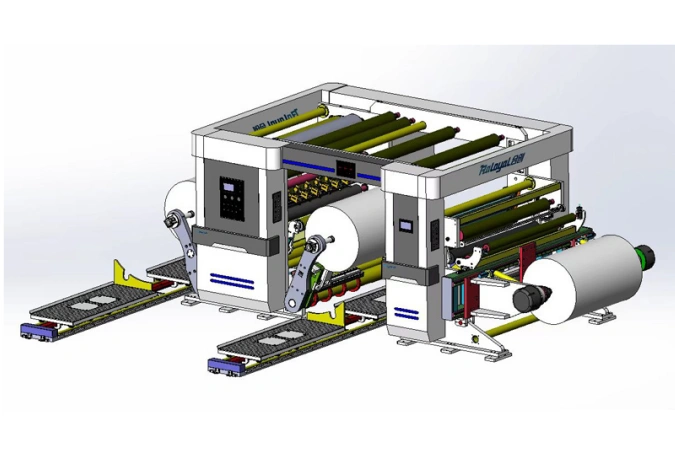

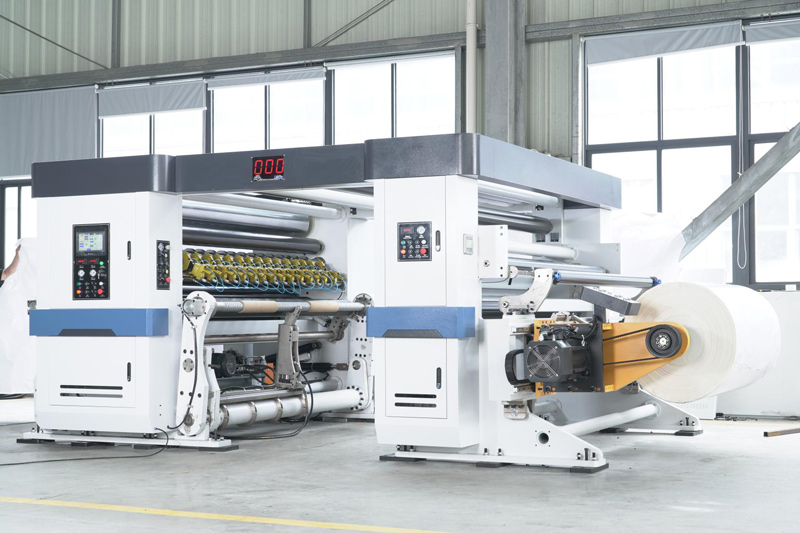

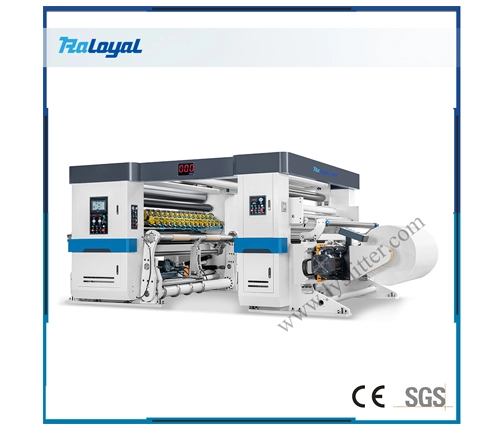

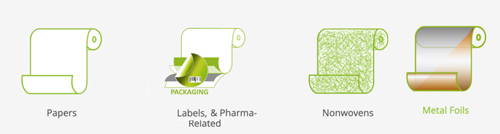

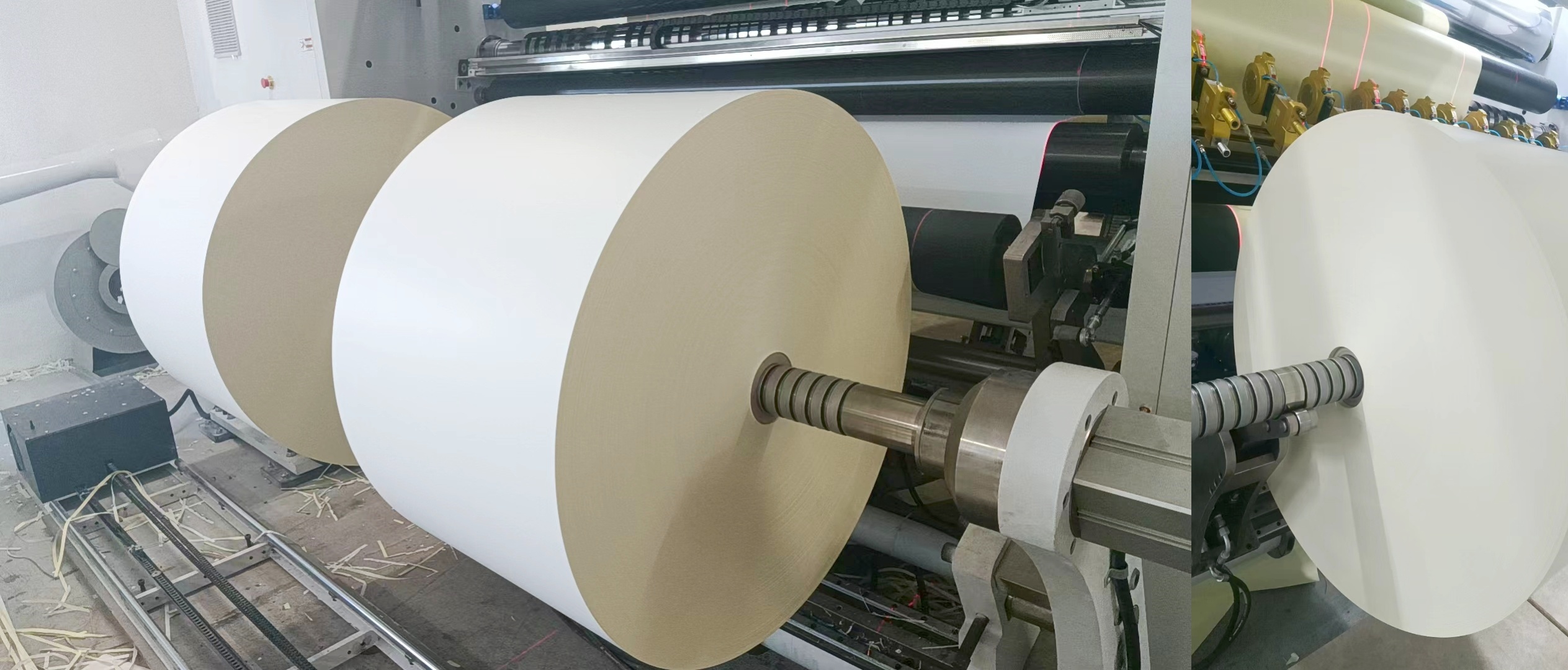

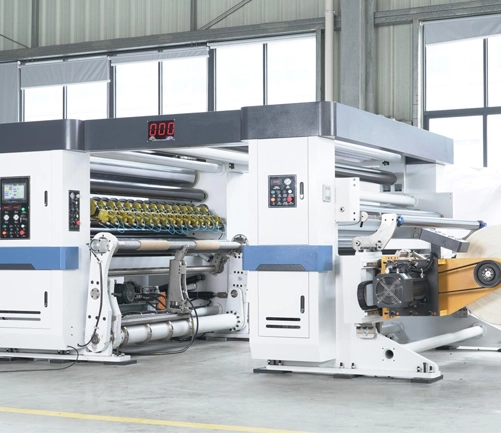

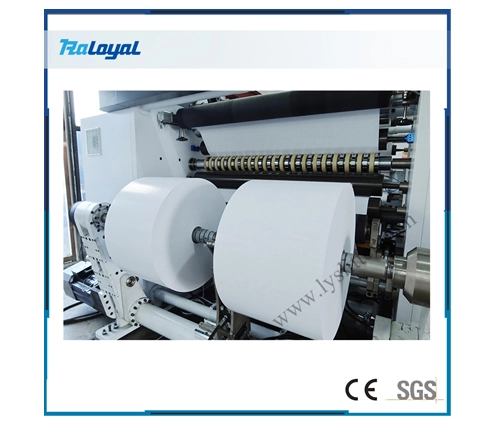

Plus series slitter rewinder machine purposely designed for large jumbo roll, for large jumbo roll, for rewinding roll diameter is up to 1200mm. With a very solid unwinding stand and rewinding stand, the slitting speed can reach 600m/min. With the design for very convenient operation, can unload the finished jumbo roll by trolley easily on the ground. It is suitable for slitting and rewinding the label stock, all kinds of paper and laminated material ect.
This type high speed slitting machine is our matured innovation and it is also the most suitable machine for high speed and precision demand of the jumbo roller material slitting and rewinding, such as: self-adhesive label material, cardboard, laminated material.
PLUS serious is our latest matured innovation for 1200mm diameter rewinding, own the excellent performance:
Max 600m/min high speed

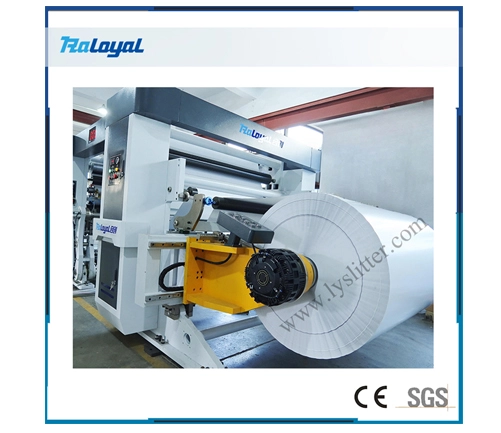

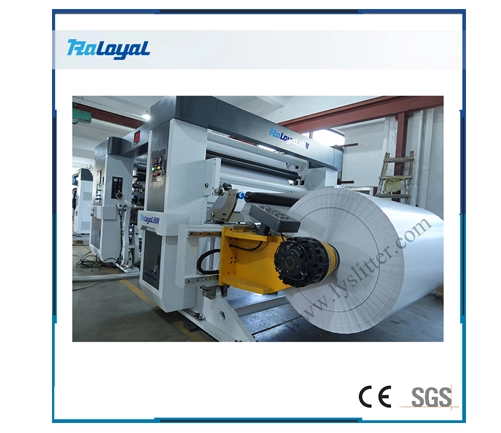

Automatic shaft-less loading for jumbo roll, "3+6" mechanical chuck

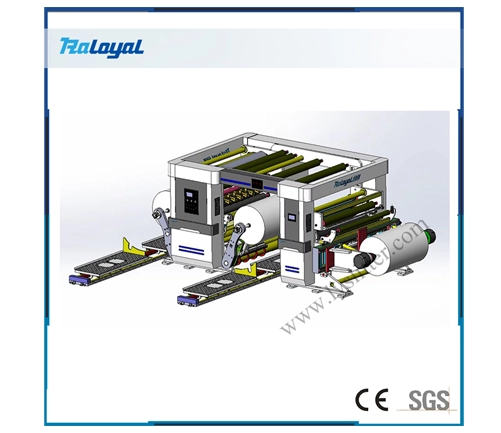

Loading the roll from the floor / lifting table (lift)

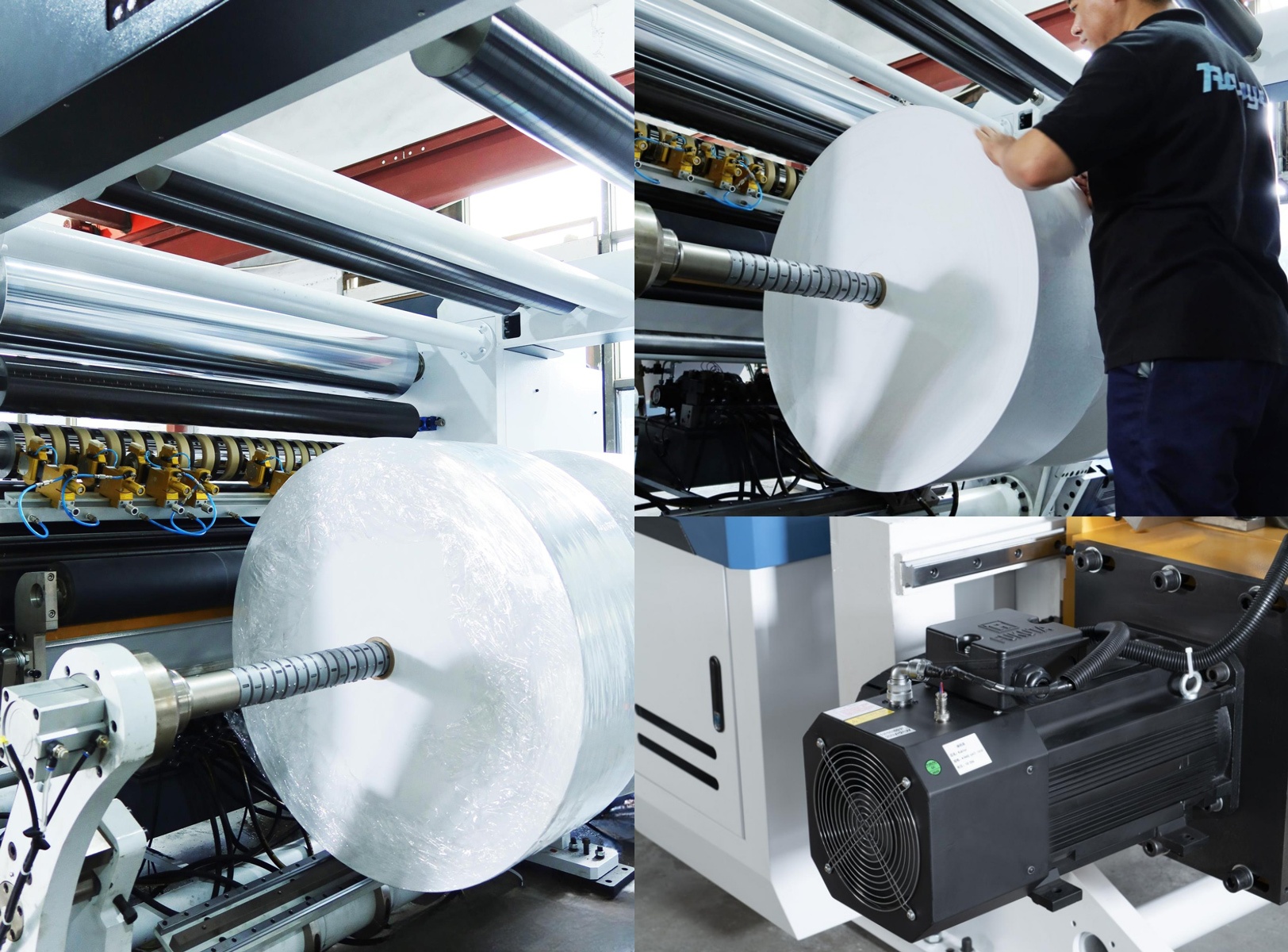

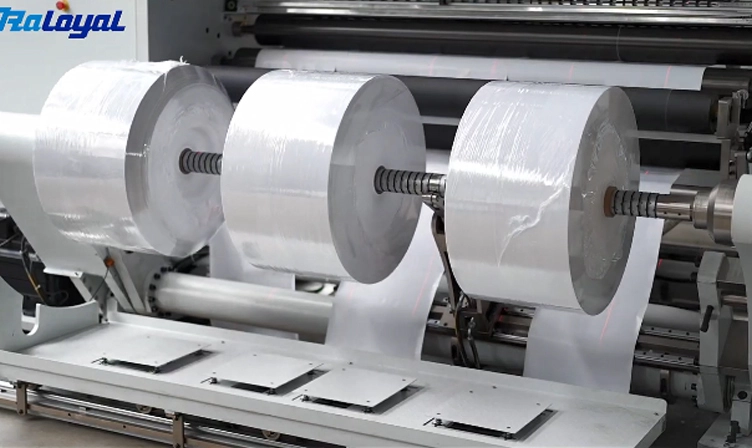

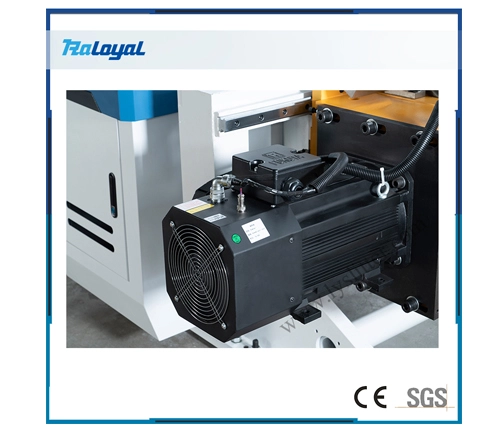

2 sets 15kw big power servo motor control the unwinding tension.

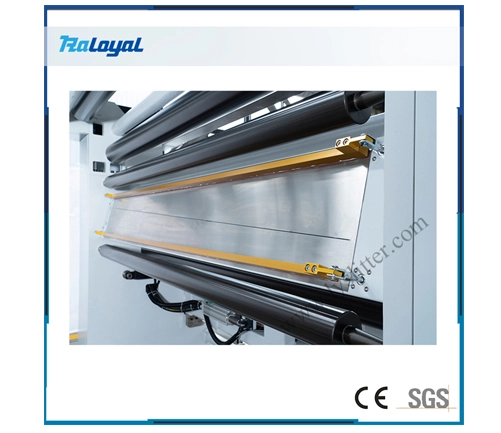

Overhead material path to prevent secondary pollution
Solve the problem of snake shape of finished product surface

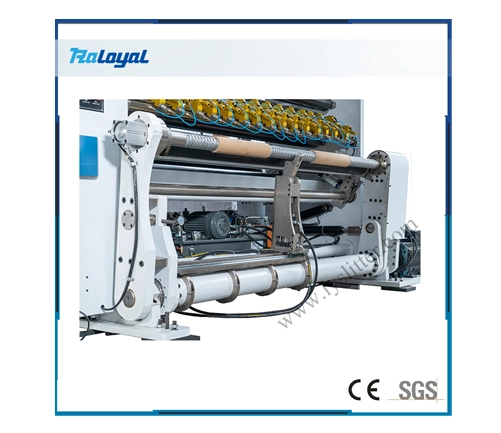

Rewinding hydraulic induction automatic rise and fall, oil pressure control (can bear 3000KG) 3HP hydraulic station system
Machine model | HCH4-1300 | HCH4-1600 | HCH4-2200 |
Max. slitting speed（depend on material） | 600m/min | 600m/min | 600m/min |
Max. Unwinding width | 1300mm | 1600mm | 2200mm |
Min. Slitting width | 70mm | 70mm | 70mm |
Max. Unwinding weight | 3000-5000KG | 3000-5000KG | 3000-5000KG |

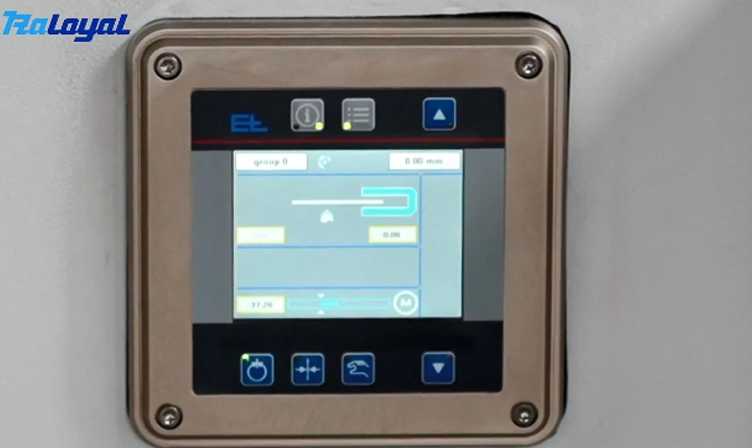

Web guide | Germany E+L | Germany E+L | Germany E+L |
| Automatic unloading trolley | Included | Included | Included |
Yes, it can.
Yes. Exactly.
Yes.
Machine as usual is integrated and we do not dismantle before delivery.
So just connect the power cable and air pipe is ok.
For the operation, we take instruction video for all customers before delivery to guide you how to operate, and provide the instruction file.
Also, we provide service: our engineer and technician open live training until you learned it and run it well.
12 months guarantee, life-long time technic maintenance and support. 24 hours feedback when receive the client writing militance proposal.
Any part damage caused by non-human factors within the warranty period can be replaced for free, excluding machine consumable parts. Maintenance of part damage caused by violation operation or mis-operation of operators will be charged with costs of parts.
The price of spare parts exceeding the warranty period shall be the lowest ex-factory price of the seller.
For extra accessories beyond the standard configuration of contractual machine, the price shall be the lowest ex-factory price of the seller.
Any time you have question about slitter, we are always here to provide service.
