Features and Advantages

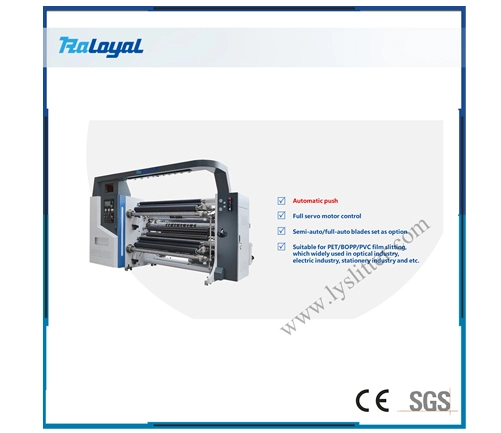

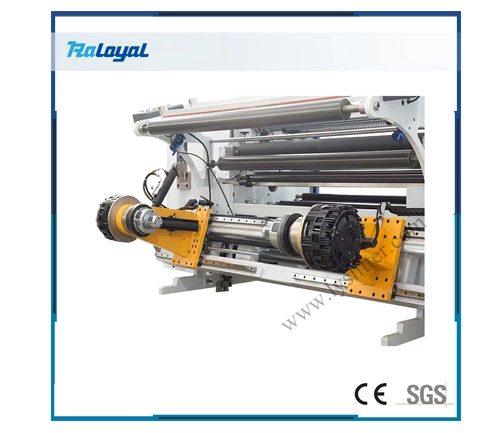

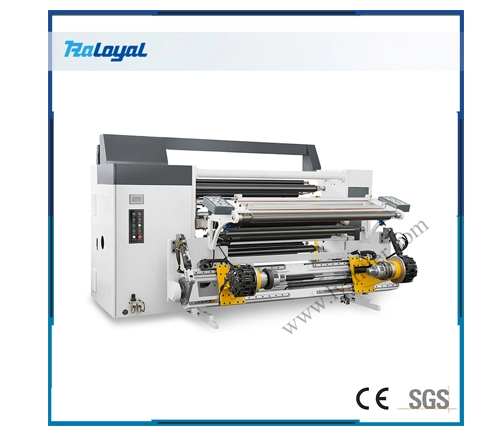

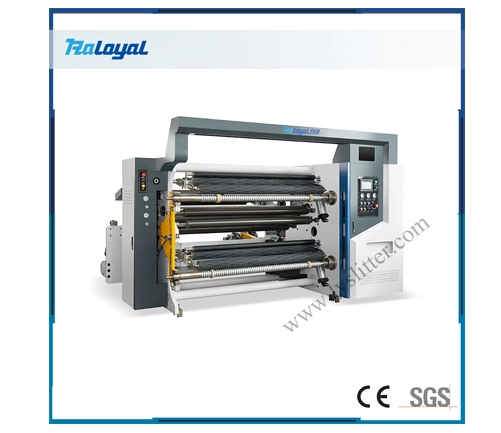

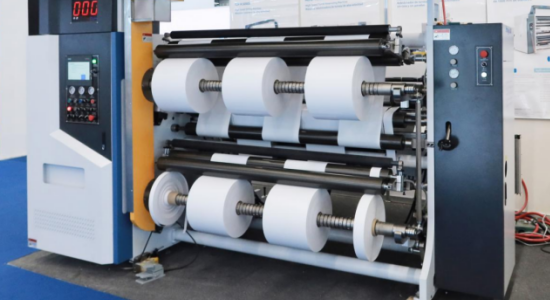

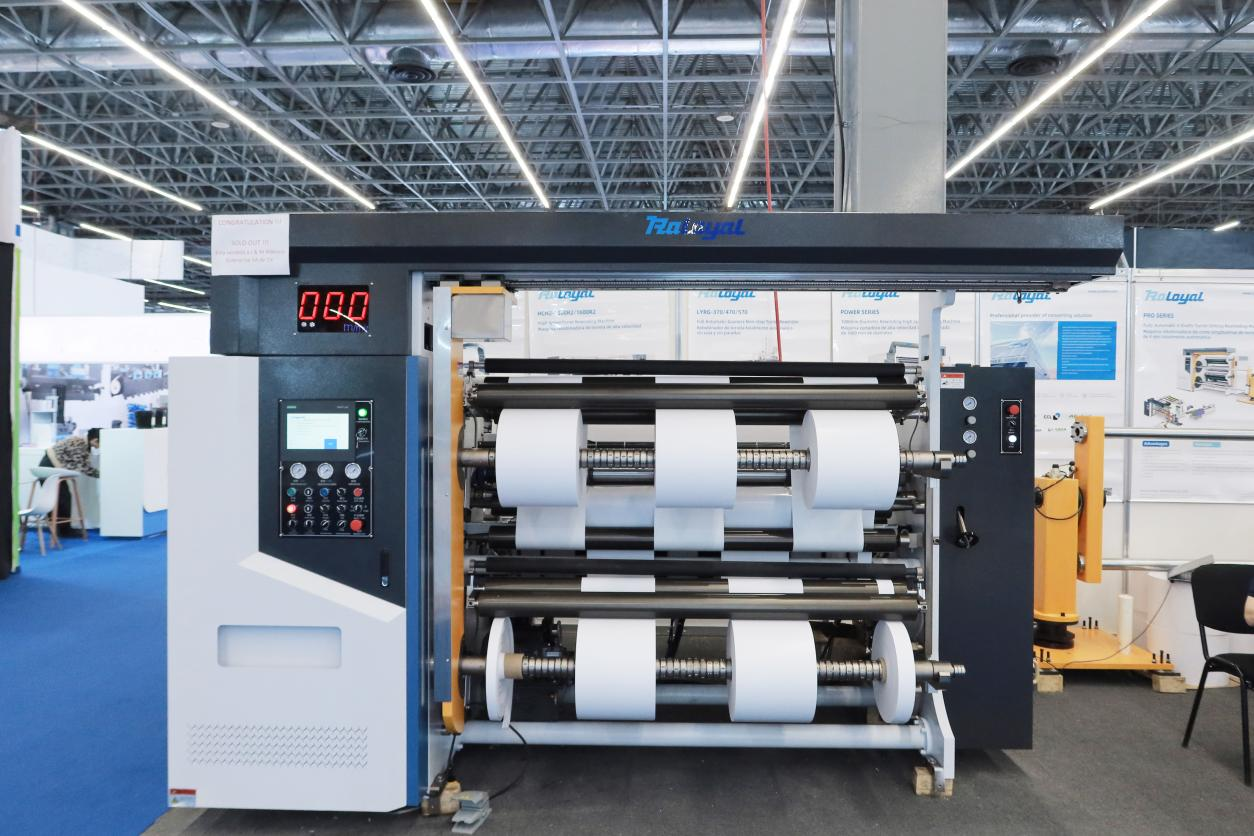

TOP B SERIES High Speed Slitting Machine pressure sensitive adhesive slitting machine is our most popular machine, which can both used for label paper such as Silicon Coated Paper, Metalized Paper, Self-adhesive Paper and flexible, such as PET/BOPP/PE etc protector film ,optical film, release film, laminated film, bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard etc slitting and rewinding.

Application of TOP A SERIES High Speed Slitting Machine

This machine owns the following advantages:

Shaftless loading for jumbo roll, 1 worker can loading jumbo roll.

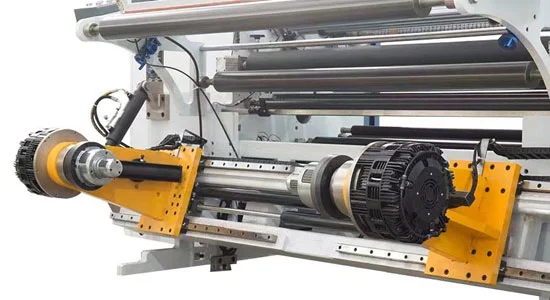

Friction shaft rewinding, perfect slitting effect in high speed, 400m/min
3 sets servo motor control, 1 set 5.5kw for traction, 2 sets 7.5kw for 2 rewinding section.

Technical Parameter

Machine model	HCH2-1300A	HCH2-1600A
Slitting speed (depend on material)	400m/min	400m/min
Unwinding width	1300mm	1600mm
Unwinding diameter	800mm	800mm
Unwinding diameter	600mm	600mm

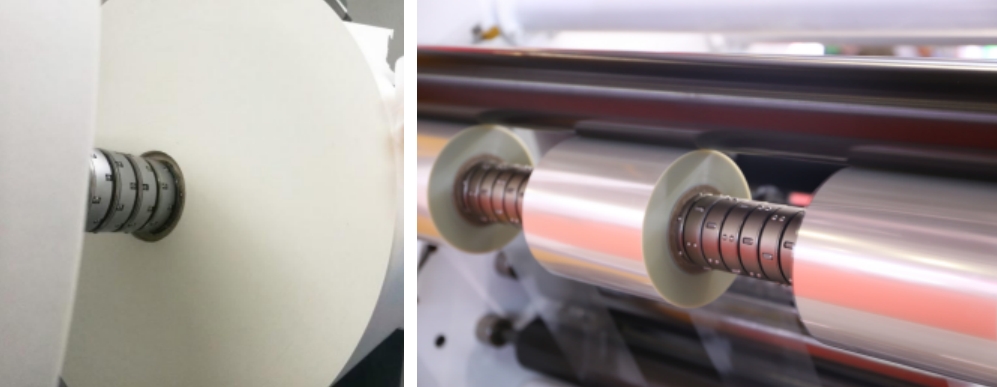

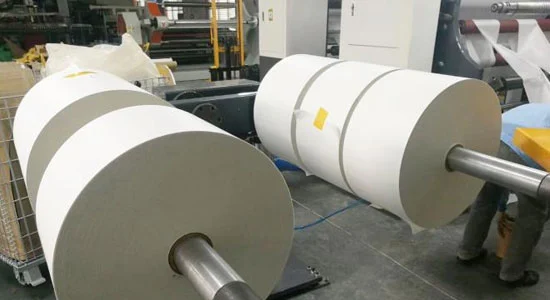

Details and Slitting Effect

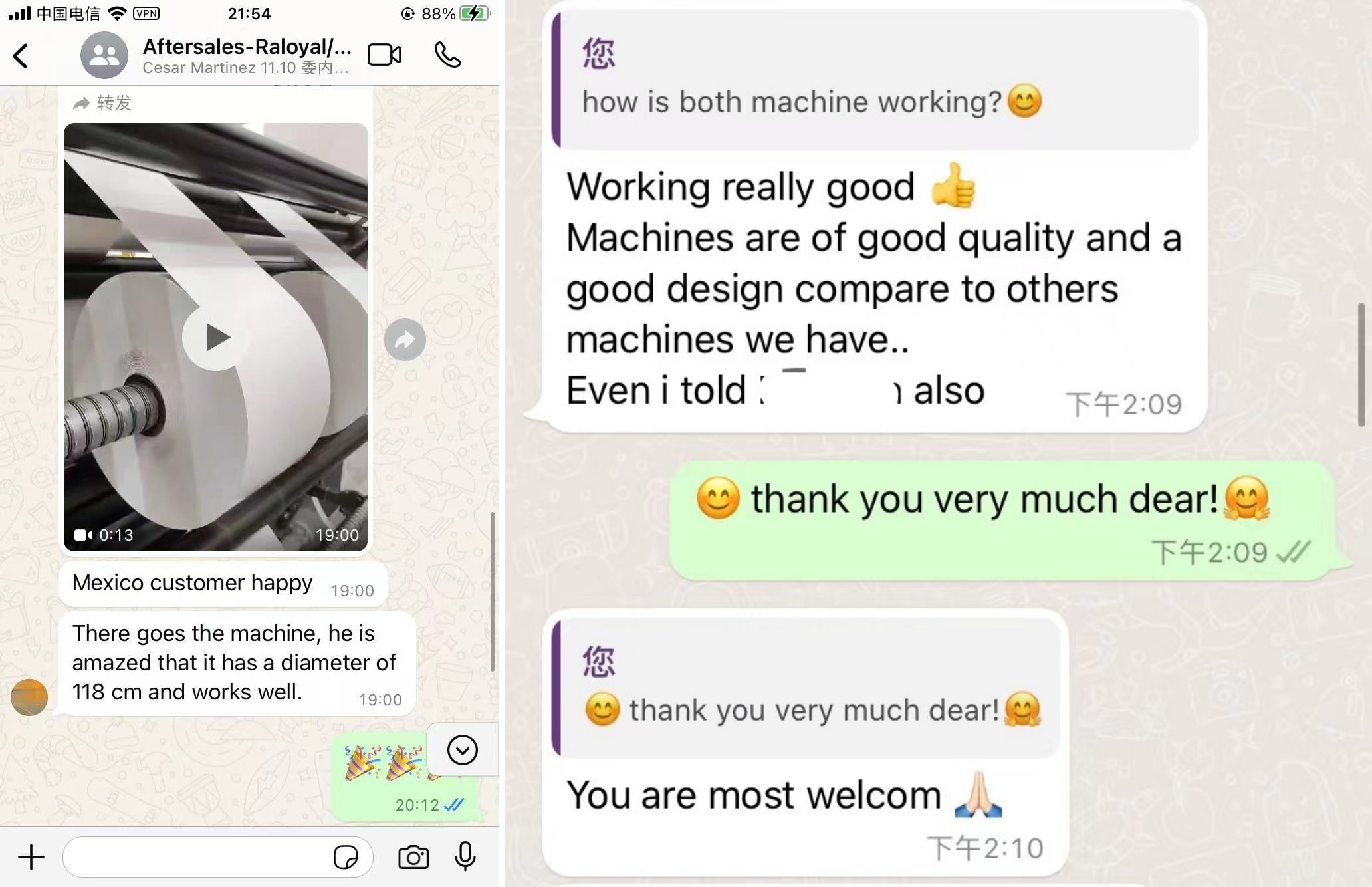

Success Case

Machine System

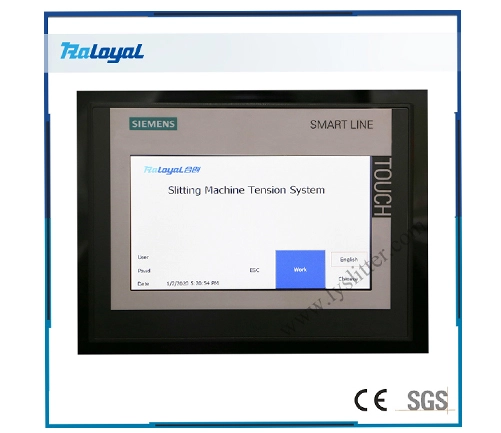

Control System

Unwinding Section

Traction Section

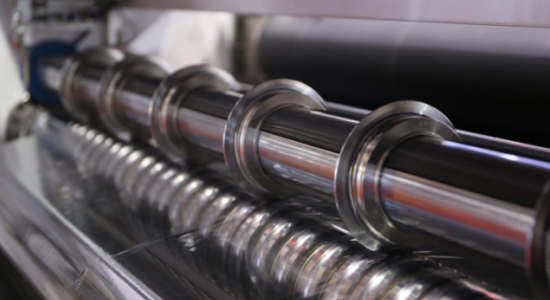

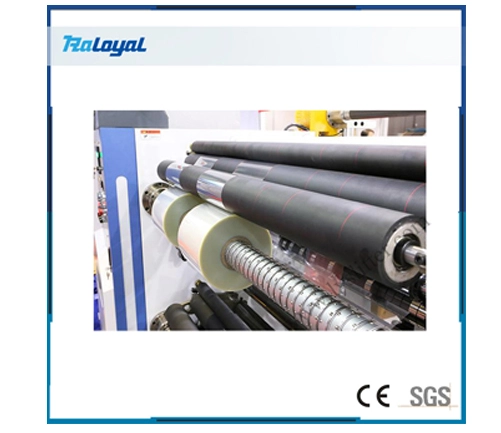

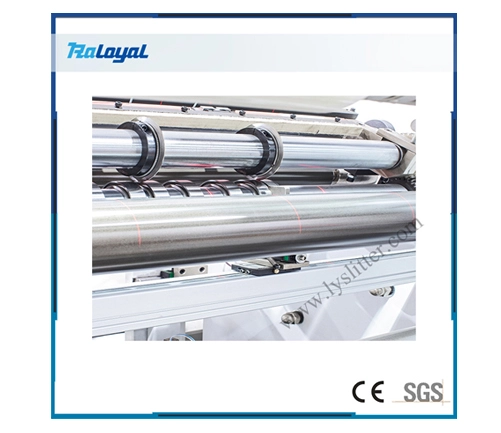

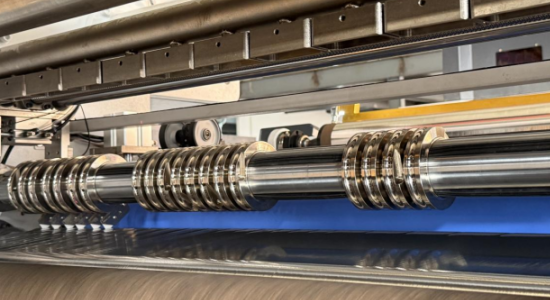

Slitting Section

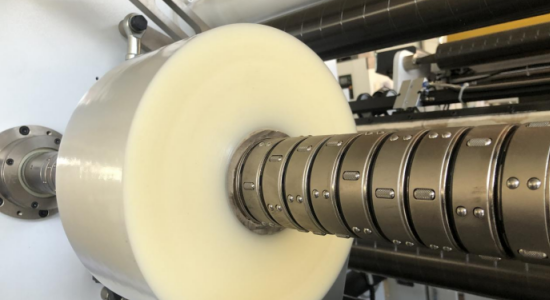

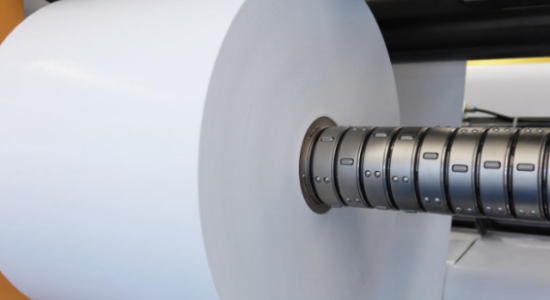

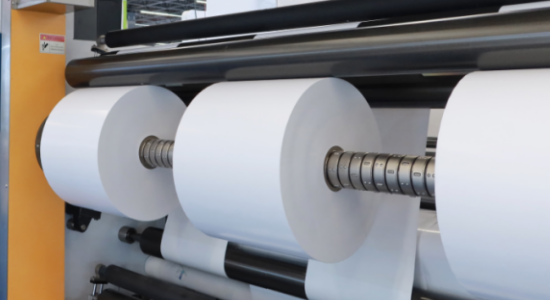

Rewinding Section

Unloading Section

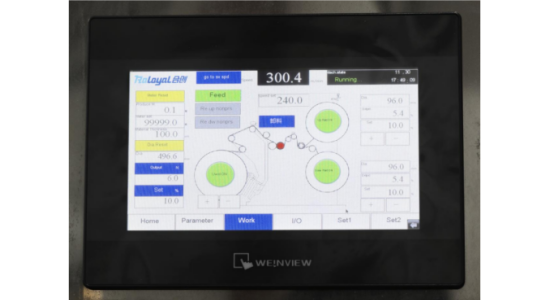

Touch screen，friendly operation

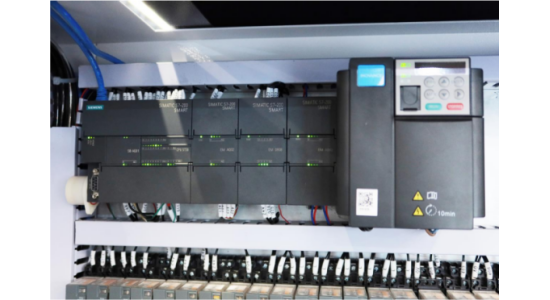

SIEMENS PLC control

Shaft-less loading, caught taking raw materials fast, easy loading.

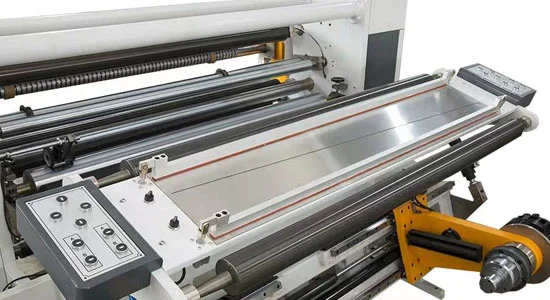

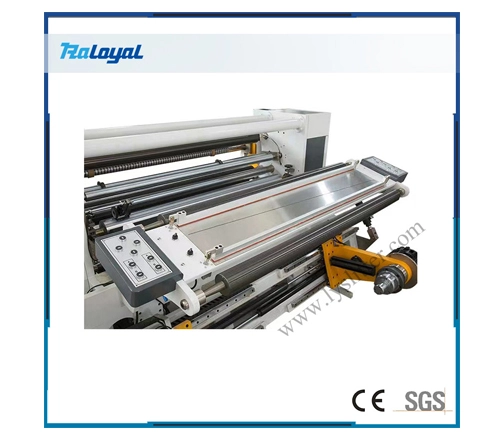

Outside designed splicing table for more friendly operating and increase productivity.

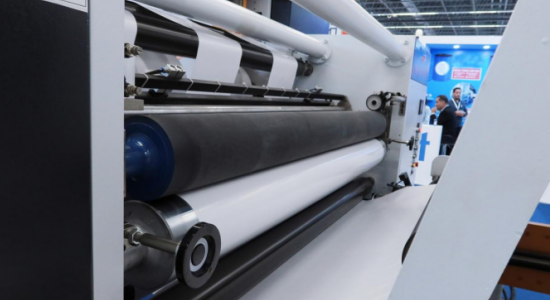

Rubber covered roller.
Guide roller for pulling material.
The movement be controlled by cylinder. Traction roller fine adjust by handwheel, different type or material adjustable can be done easily and conveniently.
