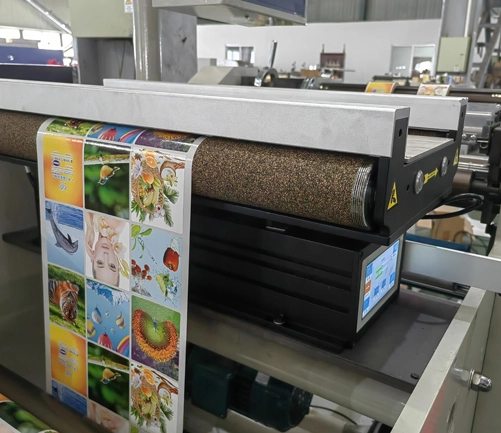

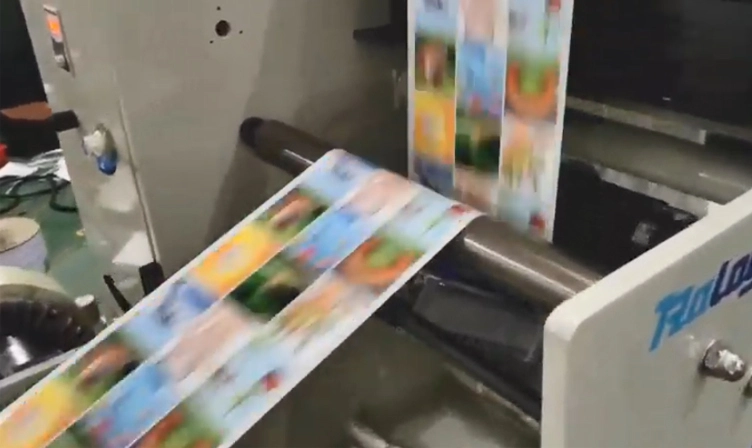

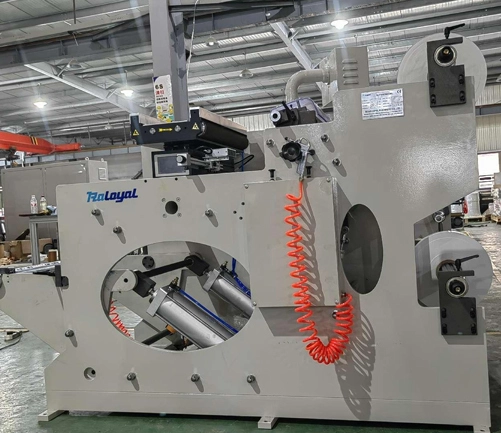

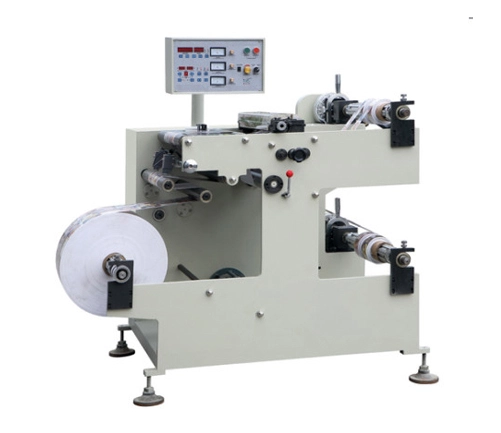

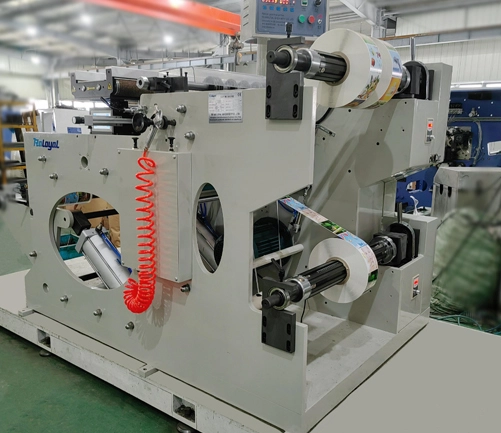

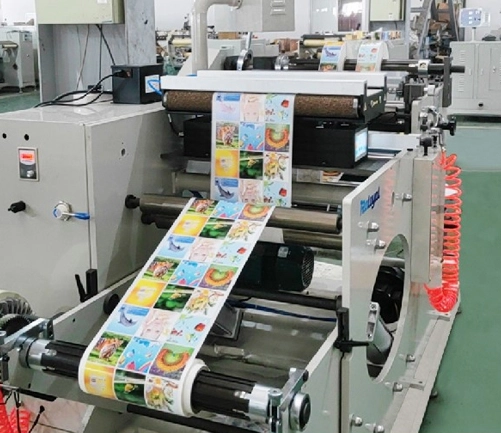

This type machine is the most ideal machine forsmall width paper,labels,film slitting and rewinding.
This type machine is the most ideal machine for small width paper, bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard, labels, film slitting and rewinding.
1 | Machine model | HC-550 |
2 | Unwinding width | 550mm |
3 | Max slitting speed（depend on material） | 120m/min |
4 | Unwinding diameter | Φ600mm |
5 | Rewinding diameter | Φ450mm |
6 | Main power | 2.2kw |
7 | Machine weight | 900kgs |
8 | Power Supply | 380v/3phases/50hz |

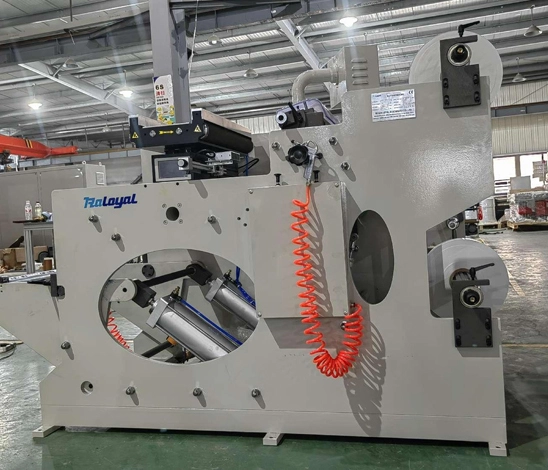

1. Automatic metering and counting function.
2. Web guide uses photocell correction, 2pcs.
3. Schneider Inverter adopted.
4. Synchronous belt transmission, can assure the noise much smaller and keep machine running in high speed.
5. Unwinding tension is controlled by magnetic powder brake.
6. Rewinding tension is controlled by magnetic powder clutch, 2pcs.
